Corrosion Resistant Silicon Carbide Heat Exchanger
  • Corrosion Resistant Silicon Carbide Heat Exchanger
  • Corrosion Resistant Silicon Carbide Heat Exchanger
  • Corrosion Resistant Silicon Carbide Heat Exchanger

    • Corrosion Resistant Silicon Carbide Heat Exchanger

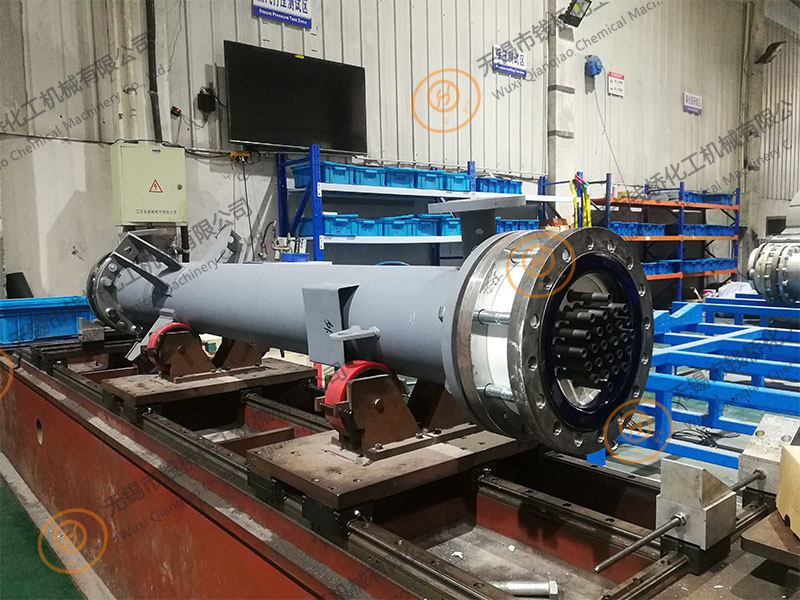

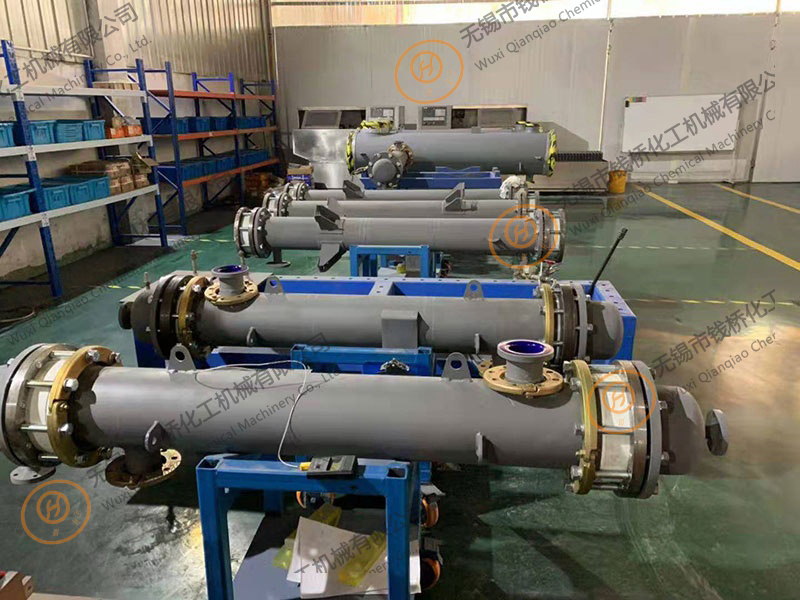

    This silicon carbide heat exchanger composes of corrosion-resistant plates and silicon carbide tubes, fit for corrosive processing. The heating of the shell and tube silicon carbide heat exchanger is realized by the heat exchange tube made from corrosion-resistant silicon carbide, which is the first choice as a medium for cooling and condensing chemical corrosive process.

    Request a Quote
    Typical Applications
    • Bromine, sulphuric acid, hydrofluoric acid, nitric acid, hydrochloric acid and so on;
    • Bases;
    • Halogenated compounds;
    • Saline solution;
    • Organic compounds
    Technical Data
    • Test every heat exchange tube under the pressure of 185 Bar before installation;
    • The diameter range of the heat exchanger’s shell is DN100 to DN 600;
    • The standard length of the heat exchange tube is 1000 mm to 4000mm;
    • The heat exchange area is 0.32 to 58 square meters;
    • The diameter of the heat exchange tube is 36mm;
    • Horizontal or vertical installation;
    • Temperature range is -19℃ to 240℃;
    • Pressure range is -0.1MPa to 0.6MPa;
    • Meet the standards of CE, ATEX, and FDA.

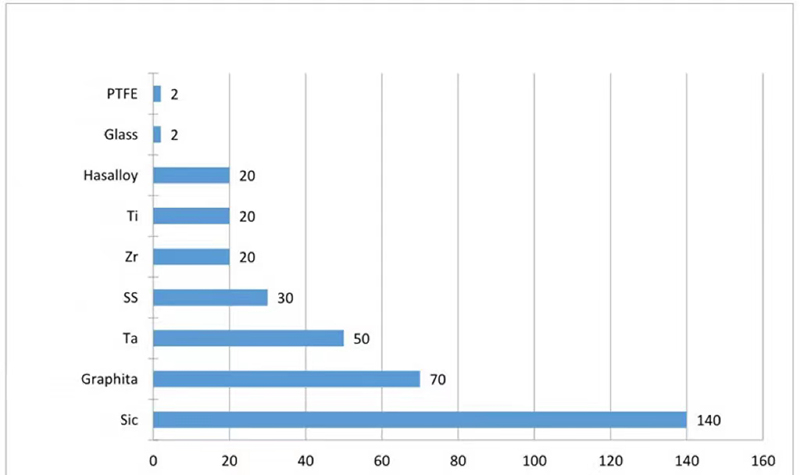

    Comparison Chart of Thermal Conductivity
    Comparison Chart of Thermal Conductivity
    Silicon carbide corrosion performance
    Testing Environment
    Conc. Reagent
    Corrosive Weight Loss    		 (mg/cm2yr)
    (Wt%) Temperature
    (C)    		 Pressureless-sintered Silicon Carbide **
    No Free SiC)**    		 Reaction-bonded Silicon Carbide
    12% SiC)
    98% H2SO4 100 1.8 55
    50% NaOH 100 2.6 >1000
    53% HF 25 < 0.2 7.9
    85% H3PO4 100 < 0.2 8.8
    70% HNO3 100 < 0.2 0.5
    45% KOH 100 < 0.2 >1000
    25% HCI 70 < 0.2 0.9
    10% HF plus 57% HNO3 25 < 0.2 >1000
    Qianqiao produces every SiC heat exchanger with pressureless-sintered silicon carbide **
